Horizontal Water Pump
The DH/DHS/DHL Series is horizontal stainless steel multistage centrifugal pump, suitable for clean water/liquid without abrasive matters. The applications are versatile, such as pressure boosting, transfer, circulation, and machinery.
- Product Introduction
The DH/DHS/DHL Series is horizontal stainless steel multistage centrifugal pump, suitable for clean water/liquid without abrasive matters. The applications are versatile, such as pressure boosting, transfer, circulation, and machinery.
APPLICATION AREA
1. Industrial circulation system
2. Washing/cleaning system
3. Pressure booster system
4. Water/liquid transfer
5. Agricultural irigation
OPERATING CONDITIONS
1. Ambient temperature: Max. +40°C
2. Liquid temperature range: +0℃~+70℃
3. High temperature resistant model: Max 105C
4. Operating pressure: Max. 10 kg/cm²
5. Inlet pressure: Max. 6 kg/cm

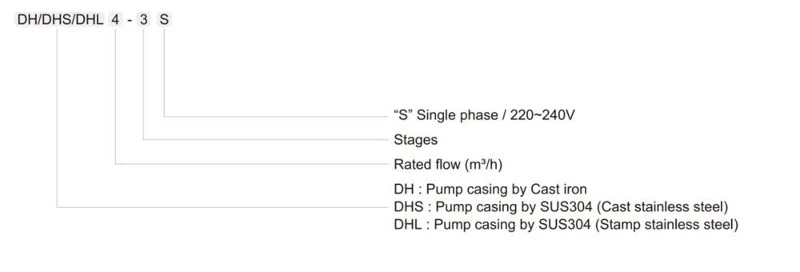

MODEL INSTRUCTION
TECHNICAL DATA
| Model | Power | Q(m³/h) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.4 | 1.8 | |
| (kw) | (HP) | l/min | 7 | 10 | 13 | 17 | 20 | 23 | 30 | |
| DH/DHS/DHL1-2 | 0.37 | 0.5 | H(m) | 19.5 | 19 1 | 18.5 | 18 | 17.5 | 17 | 14 |
| DH/DHS/DHL1-2 | 0.37 | 0.5 | 29 | 28.5 | 26 | 25 | 24.5 | 23.5 | 19 | |
| DH/DHS/DHL1-4 | 0.37 | 0.5 | 37 | 36 | 35 | 33 | 30.5 | 29 | 25 | |
| DH/DHS/DHL1-5 | 0.37 | 0.5 | 45 | 43 | 41.5 | 40 | 37.5 | 35.5 | 30 | |
| DH/DHS/DHL1-6 | 0.37 | 0.5 | 52 | 50 | 48 | 46 | 44 | 42 | 35 | |
PERFORMANCE CURVE
DIMENSION
Advantages Of Horizontal Water Pump
1.Efficient Operation
Horizontal water pump are designed to operate efficiently, providing a high level of performance and reliability.
2.Easy Maintenance
Horizontal water pump are typically easier to access and maintain compared to vertical pumps, making it easier for operators to carry out routine maintenance tasks.
3.Space-Saving Design
Horizontal water pump take up less space compared to vertical pumps, making them a more practical option for installations with limited space.
4.Versatility
Horizontal water pump can be used in a wide range of applications, including industrial, commercial, and municipal settings.
5.Lower Installation Costs
Horizontal water pump are typically easier and less expensive to install compared to vertical pumps, saving time and money during the installation process.
Components of a Horizontal water Pump
Impeller
The impeller is a rotating component with curved blades that accelerate the fluid and generate centrifugal force.
01
Casing
The casing is a stationary enclosure surrounding the impeller, which converts the fluid's kinetic energy into pressure energy.
02
Shaft
Benchmarking machinery has great influence,covering 1,500 companies and 15 well-known enterprises across the country
03
Bearings
Bearings support the rotating shaft, reducing friction and allowing smooth operation.
04
Sealing Mechanisms
Seals prevent leakage between the rotating shaft and the stationary casing, ensuring the pump remains watertight.
05
Installation and Maintenance of Horizontal water Pump
Proper site selection and installation are crucial for the optimal performance and longevity of horizontal centrifugal pumps. Factors such as space availability, accessibility, foundation requirements, and system integration need to be considered.
Accurate alignment of the pump and motor shafts ensures smooth power transmission, reduces vibration, and extends bearing life. Coupling devices, such as flexible couplings or rigid couplings, are used to connect the pump and motor shafts.
Lubrication systems are essential for minimizing friction and wear in pump bearings and seals. Cooling systems, such as fan or water cooling, help dissipate heat generated during pump operation.
Regular maintenance procedures, including inspection, lubrication, vibration analysis, and seal checks, are crucial for identifying and addressing potential issues, extending the pump's lifespan, and maximizing uptime.
Understanding common pump issues such as leakage, reduced performance, noise, and vibration helps in diagnosing problems and implementing appropriate corrective measures.
